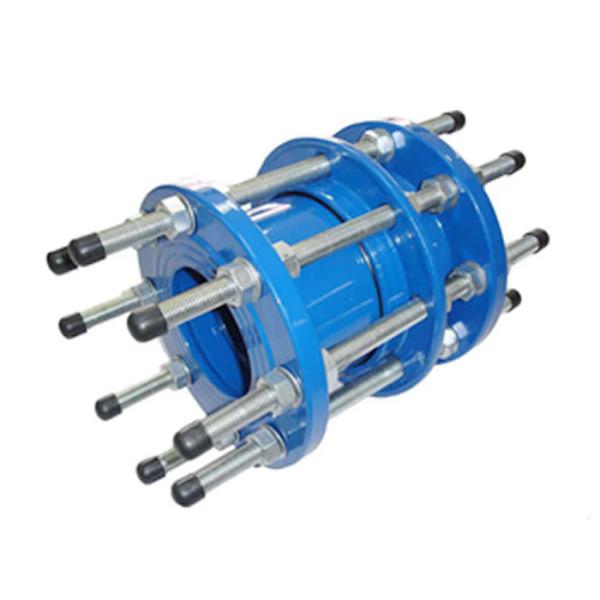

Dismantling joint

1. PRODUCT PROFILE

The Dismantling Joints are double flanged fittings that accommodate required longitudinal adjustment and can be locked at the required length with the tie bars supplied. Not only does this system allow for fast, easy maintenance of valves, pumps or meters, it simplifies future pipe work modifications and reduces downtime when changes need to be made.

The installation is also straightforward using just a spanner and torque wrench to tighten the high tensile steel or stainless steel tie bars. With fewer tie bars than flange holes and the tie bars acting as flange jointing bolts the process is speeded up but still offers a secure, rigid, fully end load resistant system with a pressure rating equal to that of the flange.

2. FEATURES

· ±25mm longitudinal adjustment simplifies future pipework modifications, reducing down time

· Can be locked at required length with tie rods supplied

· FBE anticorrosive coated make long service life

· Both restrained or un-restrained styles for selection

· The integral tie-bar assembly avoid the need for other external restraints

· Special configurations and high pressure alternatives are available on request

· The dismantling joint is particularly suitable for simplifying the installation and removal of valves, pipes and fittings of non-return valves, check valve, isolation valve, control valve, flow metering equipment, pump sets, pressure reducing valve, flanged pipe and fitting.

3. TECHNICAL SPECIFICATION

· PN10~PN25

· Size: 2”~80” (DN50~DN2000mm)

· Materials: ductile iron EN1563 GGG50

4. STANDARD

· Design & manufacturing: ISO, BS/EN, AWWA /ANSI

· Face to face: manufacturer’s

· Flange ends: AS/BS table D/E, ANSI B16.1/16.5, EN1092

· Inspection & testing: API598

5. APPLICATION

· Typical applicable industry:

· Sewage treatment works

· Water treatment works

· Power generation equipment

· Gas distribution station

· Industrial cooling systems

· Pumping station
