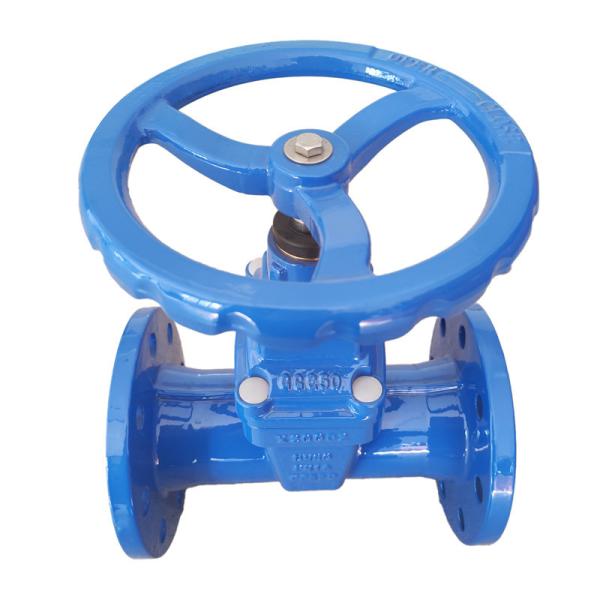

DIN-F5 Non-rising Stem Resilient Seated Gate Valve Brass Nut Type

1. PRODUCT PROFILE

DIN-F5 non-rising stem resilient seated gate valve is one type of gate valve with flexible wedge as its on-off disc, which moving direction is perpendicular with flow. Ductile Iron body and bonnet for high strength and impact resistance.Rubber bonnet gasket for longevity and protection of bonnet bolts , Isolated fasteners for corrosion protection.Stainless steel stem with rolling thread for high strength and corrosion resistance .Back sealing facility to allow for replace ment of seals under full operating pres sure.

Straight through full bore to avoid debris traps, small flow resistance.Prosper Flow can manufacture resilient seated gate valve according to the standard of DIN3202 F4/F5/BS5163 with sizes of 2″~12″ (DN50~300mm).

2. FEATURES

· Full bore design

· Self cleaning & low pressure loss

· Rolled stem ensure smooth thread edges and double thread

· Low operating torque

· Good and clear body marking (Castings are from the same foundry with AVK Valve and Spain TALIS)

· Online replaceable under full pressure with valve fully opened; Three o-rings protects upper stem from impurities entering from the water way

· Every valve be 100% tested and qualified before packmaterialing and delivery

3. STANDARD

· Design & manufacturing: EN1171/1074/DIN3202-F4/ F5/BS5163

· Face to face: EN558-1 series 3,14,15

· Flanged ends: ISO7005-2, EN1092-2, DIN2501 PN10/PN16

· Inspection & testing: EN12266-1

4. TECHNICAL SPECIFICATION

· Working pressure: PN10 / PN16 Bar

· Size: 2″~12″ (DN50~300mm)

· Materials: cast iron, ductile iron

· Epoxy resin thickness: ≥250micron

· Applicable temperature: 0℃~+80℃

· Available with handwheel/square cap/gearbox/ electric actuator

5. APPLICATION

· Water supply system

· Waste water, sludge, sewage treatment industry

· Irrigation system

· Real estate industry

· Mining, steel industry

· Metallurgy plant, power plant

· Textile, pharmaceutical industry

· Food, pharmaceutical industry
