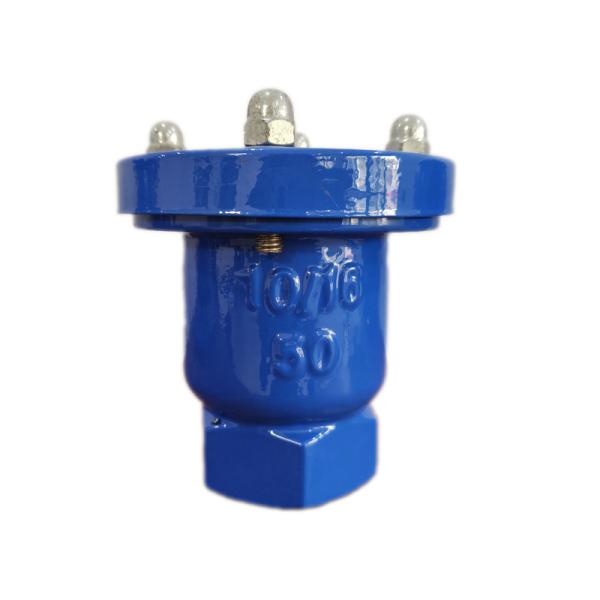

Singles Orifice Air Valve Threaded

1. PRODUCT PROFILE

Single orifice air valve is one type of single ball air release valve with threaded endsAir valve is one important exhaust valve in the long big piping transport, which is normally mounted on the top of the pipe or pipe air holding place to release the air in the pipe, making sure the pipe work normally. Single orifice air valve can remove the air existed in the pipe more flexible, preventing of the pressure fluctuation or other damages in the piping system. Single orifice air valve is applicable especially to the main water pipes, sewage pipes and deep well pumps piping system. Prosper Flow can manufacture the single orifice air valve according to standard of BS EN1074-4:2000, BS5163:2004 with sizes of 3/4”~ 8” (DN20 ~ DN200mm).

2. FEATURES

· Discharge air more flexible

· Preventing of the water hammer

· Discharge the air slowly

· Safer self-protection

· Small volume, light weight, small exhaust flow

· Long service life

3. TECHNICAL SPECIFICATION

· Nominal pressure: PN10 / PN16 bar

· Size: 3/4”~ 8” (DN20 ~ DN200mm)

· Materials: cast iron (GG25, ASTM A126 B), ductile iron (GGG50, GJS500, DIN1693, BS EN1563, ASTM A536 65-45-12)

· Working temperature: 0 ℃ ~ + 80 ℃

4. STANDARD

· Design & manufacturing: BS EN1074-4:2000, BS5163:2004

· Face to face: BS EN1074-4

· Flanged ends: EN 1092-2:1997, ASME B16.1/B16.42, AS4087

· Inspection & testing: EN 12266-1:2012

5. APPLICATION

· Water projects

· Real estate

· Water treatment industry

· Power plant

· Pump station
