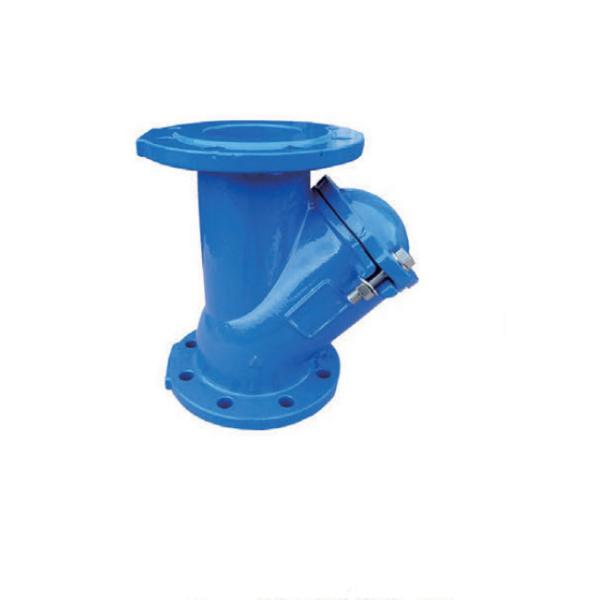

DN50-DN300 PN10/PN16 Ductile Iron Ball Check Valve

1. PRODUCT PROFILE

A Ball Check Valve is a resilient seated ball check valve with a sinking ball* to prevent back flow and allowing flow passage with minimum friction loss. The full-ported valve seat is uniquely designed allowing the ball to seat leak-tight without getting wedge into the valve seat. For vacuum or anti-flooding valve application, a "floating" rather than "sinking" ball is used. Due to its simple flow efficient and virtually maintenance-free design the valve is commonly specified and used in submersible wastewater lift stations.Prosper Flow can design and manufacture the ball type check valve according to DIN F6 with sizes of 2”~12” (DN50~DN300mm).

2. FEATURES

Self-cleaning and full bore structure ensures the continuous operation.
The smooth body provides full flow with low pressure loss.
Eliminates the risk of impurities getting stuck on the ball.

3. STANDARD

· Design & manufacturing: API594
· Face to face:DIN F6
· Matching flanges: ANSI B16.1/5, EN 1092, JIS10K, AS 2129
· Inspection & testing: API598/EN12266

4. TECHNICAL SPECIFICATION

· PN10 / PN16 / 125LB / 150LB / JIS10K / 150PSI / 200PSI

· Size: 2″~12″ (50~300mm)

· Materials: : Ductile iron (GGG50, GJS500, DIN1693, BS EN1563, ASTM A536 65-45-12)

· Epoxy coating with thickness ≥ 250μm

· Working temperature: 0℃~+80℃

5. APPLICATION

· Water supply, sewage treatment industry
· Fire fighting industry
· Real estate industry
· Mining, steel industry
· Metallurgy plant, power plant
· Oil, chemical industry
· Textile, pharmaceutical industry

How does a di ball check valve work?

A ball check valve has an internal conically tapered shape for the sealing seat and a ball. ... It forces the ball off of the sealing seat and allows media to flow through. When there is back pressure, it moves the ball back to the seat seal (assisted by the spring if designed with one).
