    4inch Rising Stem Metal Seated Gate Valve EN1074

    Ask Lasest Price
    Brand Name : OEM
    Model Number : BS/DIN
    Certification : CE / ACS
    Price : 0~100$
    Payment Terms : T/T, L/C
    Supply Ability : 500 thousands pcs per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

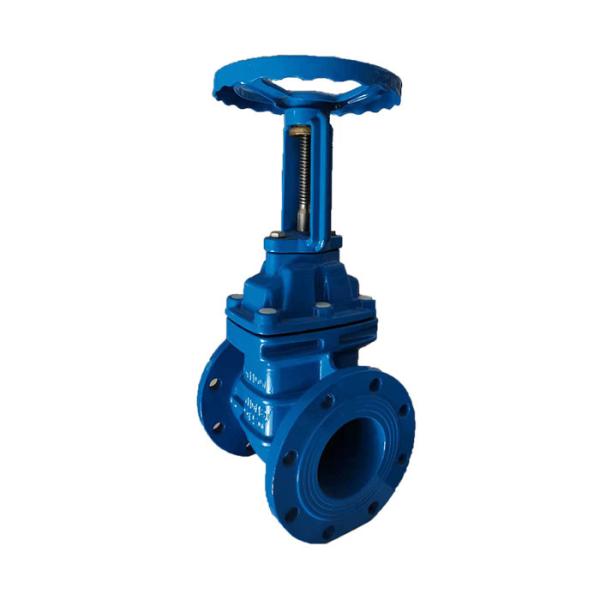

    4inch Rising Stem Metal Seated Gate Valve EN1074

    Rising Stem Ductile Iron Metal Seated Gate Valve DN50-DN1000


    1. PRODUCT PROFILE


    Metal seated gate valves are primarily designed for the flow isolation of a length of pipeline or piece of equipment. It uses a ductile iron gate that houses bronze rings to ensure a watertight seal. The non-rising stem design ensures the stem thread is adequately lubricated by the water passing through the valve. In essence, the whole internals are water dependent for lubrication, a factor that safeguards the longevity of the valve.


    MaterialDuctile ironMediumWater
    SizeDN50 - DN300Working PressurePN10 / PN16
    ColorBlueBrandOEM
    StandardDIN-F4Epoxy resin thickness≥250μm

    2. FEATURES


    · Unique lightweight ductile iron design

    · WRAS listed fusion bonded epoxy coated

    · Stem seals replaceable under pressure

    · Full bore design

    · With precise machined stem, ensures low torque requirements during operation
    · Serial coating is with high temperature resistant spray epoxy. FBE powder epoxy coating is optional
    · WRAS approved coating available upon request which meets hygienic requirements for potable water applications

    · Key, hand wheel or manual/electric actuation operation

    · Integral feet to facilitate safe storage

    · Robust low maintenance design suitable for buried service


    3. STANDARD


    · Design & manufacturing: EN1171/1074/DIN3202-F4/ F5/BS5163

    · Flanges and Drillings: BS EN 1092-2

    · Face to Face Dimensions: BS E N 558


    4. TECHNICAL SPECIFICATION


    · Working pressure:PN10/PN16

    · Temperature range -10°C to 80°C

    · Designed according to EN 1074 part 1 & 2

    · Standard flange drilling to EN1092-2 (ISO 7005-2), PN 10/16

    · Hydraulic test according to EN 1074-1 & 2 / EN 12266

    · Seat: 1.1 x PN (in bar), Body: 1.5 x PN (in bar)

    · Approved for wastewater / pressure test EN 1074


    5. APPLICATION


    · Water supply system

    · Waste water, sludge, sewage treatment industry

    · Irrigation system

    · Real estate industry

    · Mining, steel industry

    · Metallurgy plant, power plant

    · Textile, pharmaceutical industry

    · Food, pharmaceutical industry
