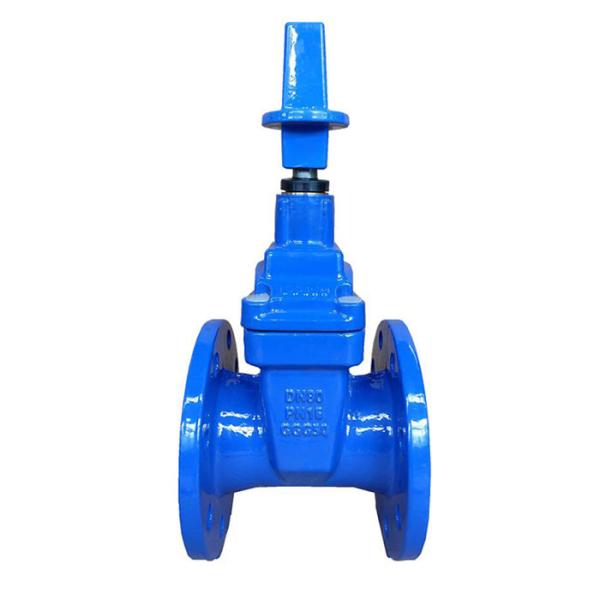

Soft Seated Gate Valve Flange End DN50-DN800

1.PRODUCT PROFILE

Soft seated gate valves, in ductile iron with flat body and EPDM covered wedge.Traditional gate valves often have water leakage and corrosion. In order to overcome this shortcoming, the soft seated gate valve appeared. As an updated product of the traditional gate valve, the soft seated gate valve overcomes the shortcomings of poor sealing performance, poor elasticity, and easy corrosion of general gate valves.
The soft seated gate valve uses a flexible rubber-wrapped gate, which uses the elastic energy of rubber to produce a small amount of deformation compensation, so that the valve can achieve a good sealing effect.

2. FEATURES

· Full bore design

· Self cleaning & low pressure loss

· Rolled stem ensure smooth thread edges and double thread

· Low operating torque

· Good and clear body marking

· Online replaceable under full pressure with valve fully opened; Three o-rings protects upper stem from impurities entering from the water way

· Every valve be 100% tested and qualified before packing and delivery

3. STANDARD

· Design & manufacturing:DINF4/F5/BS5163

· Face to face: EN558-1 series 3,14,15

· Flanged ends: ISO7005-2, EN1092-2, DIN2501 PN10/PN16

· Inspection & testing: EN12266-1

4. TECHNICAL SPECIFICATION

· Working pressure: PN10 / PN16 Bar

· Size: 2"-32"(DN50~800mm)

· Materials: cast iron, ductile iron

· Epoxy resin thickness: ≥250micron

· Applicable temperature: 0℃~+80℃

· Available with handwheel/square cap/gearbox/ electric actuator

5. APPLICATION

· Water supply system

· Waste water, sludge, sewage treatment industry

· Irrigation system

· Real estate industry

· Mining, steel industry

· Metallurgy plant, power plant

· Textile, pharmaceutical industry

· Food, pharmaceutical industry
