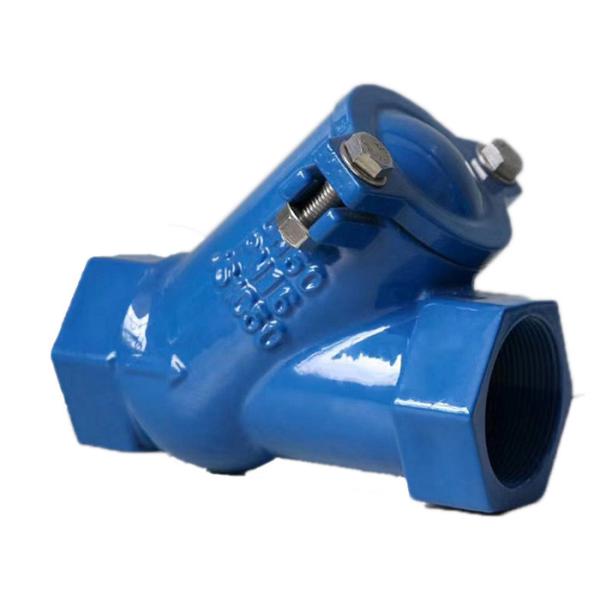

Ball Check Valve

1. PRODUCT PROFILE

A ball check valve functions by means of a ball that moves up and down inside the valve. The seat is machined to fit the ball, and the chamber is conically shaped to guide the ball into the seat to seal and stop a reverse flow.

Ball check valves are often preferred for use in pumping stations that are rarely attended, since they demand only limited maintenance, typically if the ball makes noise caused by insufficient pump capacity or water hammer.

2. FEATURES

· Full bore design

· BC, bolted cover

· Flexible rubber disc

· Silent valve open and close

3. STANDARD

· Design & manufacturing: BS5153

· Face to face: BS5153, ASME B16.10, DIN F6

· Flange ends: EN1092-2, ASME B16.1/B16.42, AS4087

· Inspection & testing: API598 / EN12266

4. TECHNICAL SPECIFICATION

· PN10/PN16

· Size: 2”~20” (DN50~DN400mm)

· Materials: Ductile iron (GGG50, GJS500, DIN1693, BS EN1563, ASTM A536 65-45-12)

· Working pressure: 10bar, 16bar

· Applicable medium: water, sewage, waste water

· Applicable temperature: 0℃~+80℃

5. APPLICATION

· Water supply, sewage treatment industry

· Fire fighting industry

· Real estate industry

· Mining, steel industry

· Metallurgy plant, power plant

· Oil, chemical industry

· Textile, pharmaceutical industry
