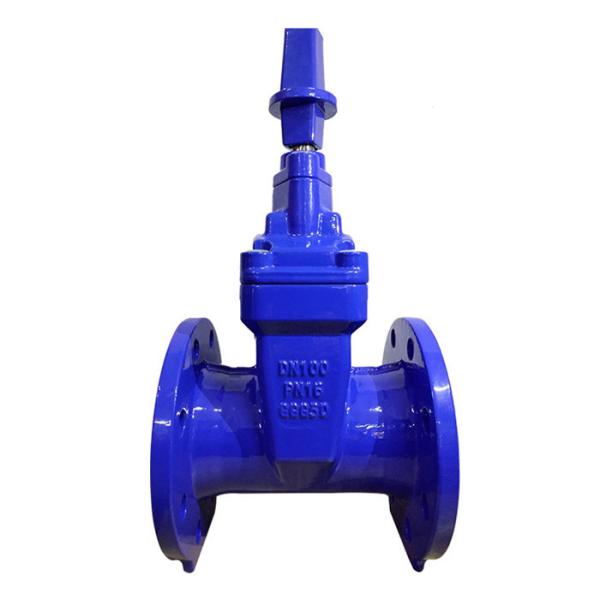

Customized Flange End Resilient Seated Sluice Gate Valve

1. PRODUCT PROFILE

A gate valve or a Sluice gate valve is described as a valve that uses a gate or wedge shape disk that slides perpendicular to the flow of the fluid into or out of the pipeline. When the gate valve is fully opened, the disk of the gate valve is completely separated from the flow. The sluice gate valve is controlled by a lifting gate or wedge, so that flow of water can move without obstruction. The top end of the stem has a hand-operated wheel or a motor that raises and lowers the doors, and the lower end has a circular or wedge gate to obstruct water flow. It employs a threaded stem, so the valve must turn several times to shift from the open position to the closed position, and vice versa to stop water hammering.

2. FEATURES

· Full bore design

· Low operating torque

· Every valve be 100% tested and qualified before packing and delivery

3. STANDARD

· Design & manufacturing:DIN3202-F5

· Face to face: EN558-1 series 3,14,15

· Flanged ends: ISO7005-2, EN1092-2, DIN2501 PN10/PN16

· Inspection & testing: EN12266-1

4. TECHNICAL SPECIFICATION

· Working pressure: PN10 / PN16 Bar

· Size: 2"-32"(DN50~800mm)

· Materials: cast iron, ductile iron

· Epoxy resin thickness: ≥250micron

· Applicable temperature: 0℃~+80℃

· Available with handwheel/square cap/gearbox/ electric actuator

5. APPLICATION

· Water supply system

· Waste water, sludge, sewage treatment industry

· Irrigation system

· Real estate industry

· Mining, steel industry

· Metallurgy plant, power plant

· Textile, pharmaceutical industry

· Food, pharmaceutical industry

Anhui Prosper Flow Technology Co., Ltd. is located in Tongling City, Anhui Province, a famous ductile iron valve production base   in China.Such as the Giant AVK Valve and TALIS Spain,who all buy castings here.
This is a manufacturer of production and sales of valves and fittings. It has import and export license. Prosper flow has a high-quality professional team, and the team's core personnel have more than 10 years of experience in the valve industry. With extensive experience and continuous development and efforts, we understand the international standards and strict export quality requirements of ductile iron valves. We provide OEM services for the world-famous valve companies. Our valves cover British Standard (BS), German Standard (DIN), American Standard (AWWA), Australian Standard (AS), South African Standard (SABS) and National Standard (GB). Now it has its own valve logo ‘ZW’. We have won the favor of the market and customers with advanced management and technology, high quality products and excellent service.
